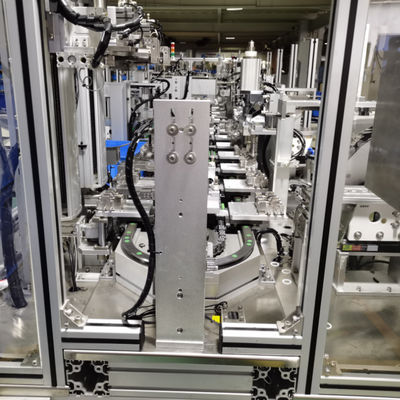

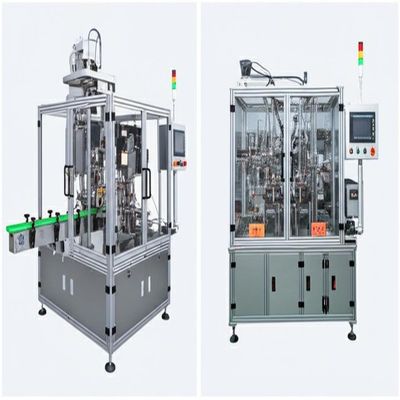

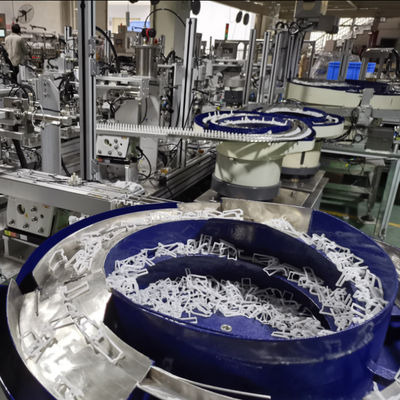

Fully Automated Lotion Pump and Trigger Sprayer Assembly Machine with 0.5m³/min Air Consumption and 4L Silicone Oil Storage

Fully Automated Lotion Pump and Trigger Sprayer Assembly Machine with 0.5m³/min Air Consumption and 4L Silicone Oil Storage
Fully Automated Lotion Pump and Trigger Sprayer Assembly Machine with 0.5m³/min Air Consumption and 4L Silicone Oil Storage Fully Automated Lotion Pump and Trigger Sprayer Assembly Machine with 0.5m³/min Air Consumption and 4L Silicone Oil Storage Fully Automated Lotion Pump and Trigger Sprayer Assembly Machine with 0.5m³/min Air Consumption and 4L Silicone Oil Storage

ภาพใหญ่ :  Fully Automated Lotion Pump and Trigger Sprayer Assembly Machine with 0.5m³/min Air Consumption and 4L Silicone Oil Storage

รายละเอียดสินค้า:
สถานที่กำเนิด: จีน
ชื่อแบรนด์: SENCAN
ได้รับการรับรอง: CE, ISO9001
หมายเลขรุ่น: SC-TP-798
การชำระเงิน:
จำนวนสั่งซื้อขั้นต่ำ: 1 ชุด
ราคา: Negotiate price according to actual situation
รายละเอียดการบรรจุ: เคสไม้
เวลาการส่งมอบ: 90 วัน
เงื่อนไขการชำระเงิน: t/t, l/c
สามารถในการผลิต: 2-20 ชุด
รายละเอียดสินค้า
แรงดันไฟฟ้า: 220V การซ่อมบำรุง: ง่าย
อินเตอร์เฟสการทำงาน: หน้าจอสัมผัส วิธีการให้อาหาร: แผ่นดิสก์สั่น
การตรวจสอบความผิดพลาด: อัตโนมัติ วิธีการดำเนินงาน: การควบคุมหน้าจอสัมผัส
การรับรองผลิตภัณฑ์: CE, ISO การใช้อากาศ: 0.5 ลบ.ม./นาที
ระดับอัตโนมัติ: อัตโนมัติเต็มรูปแบบ ความจุ: ตามข้อกำหนดของลูกค้า
เน้น:

0.5m³/min Air Consumption Lotion Pump Assembly Machine

,

Above 95% Operation Rate Trigger Sprayer Assembly Machine

,

4L Silicone Oil Storage Daily Necessities Assembly Machine

Lotion Pump Liquid Trigger Sprayer Assembly Machine and Precise Daily Necessities Assembly Machine for Consistent and Accurate Assembly
Key Features
  • Linear sliding rail conveying system with servo motor drive for precise intermittent movement and static assembly positioning
  • Independent workstations with secondary positioning to achieve over 98% product qualification rate
  • Cylinder-powered manipulators for simplified maintenance and faster spare parts replacement
  • Automatic silicone oil application during tube insertion with 4L oil storage capacity
  • Optional enclosure for feeding plate to reduce operational noise
  • Integrated quality detection at each assembly stage to eliminate defective products
  • PLC control system with touch screen interface for easy operation
Technical Specifications
Applicable Products Lotion pump, shampoo pump, water sprayer, trigger sprayer, perfume pump, spray nozzle
Production Speed 1500-2500pcs/hr (customizable to customer requirements)
Product Qualification Rate Above 98%
Operation Rate Above 95%
Power Requirements AC380V, 50Hz, 4kw/hr
Dimensions Variable based on production speed requirements
Weight Approximately 3000kg
Operator Requirement 1 person per machine
