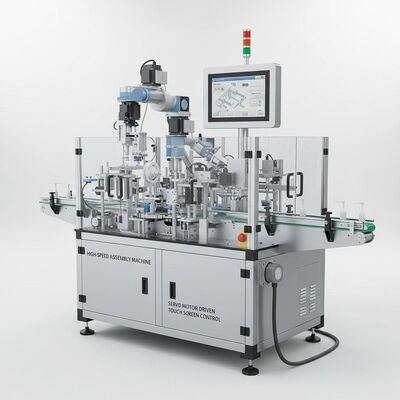

High-Speed 1500-2500pcs/hr Servo Motor Driven Lotion Pump and Trigger Sprayer Assembly Machine with Touch Screen Control

High-Speed 1500-2500pcs/hr Servo Motor Driven Lotion Pump and Trigger Sprayer Assembly Machine with Touch Screen Control
High-Speed 1500-2500pcs/hr Servo Motor Driven Lotion Pump and Trigger Sprayer Assembly Machine with Touch Screen Control High-Speed 1500-2500pcs/hr Servo Motor Driven Lotion Pump and Trigger Sprayer Assembly Machine with Touch Screen Control High-Speed 1500-2500pcs/hr Servo Motor Driven Lotion Pump and Trigger Sprayer Assembly Machine with Touch Screen Control

ภาพใหญ่ :  High-Speed 1500-2500pcs/hr Servo Motor Driven Lotion Pump and Trigger Sprayer Assembly Machine with Touch Screen Control

รายละเอียดสินค้า:
สถานที่กำเนิด: จีน
ชื่อแบรนด์: SENCAN
ได้รับการรับรอง: CE, ISO9001
หมายเลขรุ่น: SC-TK-795
การชำระเงิน:
จำนวนสั่งซื้อขั้นต่ำ: 1 ชุด
ราคา: Negotiate price according to actual situation
รายละเอียดการบรรจุ: กล่องไม้
เวลาการส่งมอบ: 90 วัน
เงื่อนไขการชำระเงิน: ที/ที,แอล/C
สามารถในการผลิต: 1-20 ชุด
รายละเอียดสินค้า
การรับรองผลิตภัณฑ์: ซีอี ภาษา: อังกฤษ/จีน
สินค้าที่ใช้งานได้: เยลลี่แคป การรับประกัน: 12 เดือน
ประเภทแอสเซมบลี: อัตโนมัติเต็มรูปแบบ ปริมาณการใช้อากาศ: 0.5 ลบ.ม./นาที
ความสามารถในการประกอบ: ความจุขนาดใหญ่ ประเภทการดำเนินงาน: แผ่นเสียง
วิธีการดำเนินงาน: การควบคุมหน้าจอสัมผัส ช่วงขนาดผลิตภัณฑ์: ปรับแต่งได้
โหมดการทำงาน: อัตโนมัติ กลไก: เซอร์โว
เน้น:

1500-2500pcs/hr Lotion Pump Assembly Machine

,

Servo Motor Driven Trigger Sprayer Assembly Machine

,

Touch Screen Control Liquid Sprayer Assembly Machine

Lotion Pump Liquid Trigger Sprayer Assembly Machine
Key Features

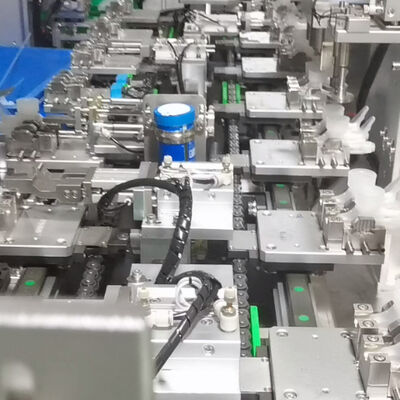

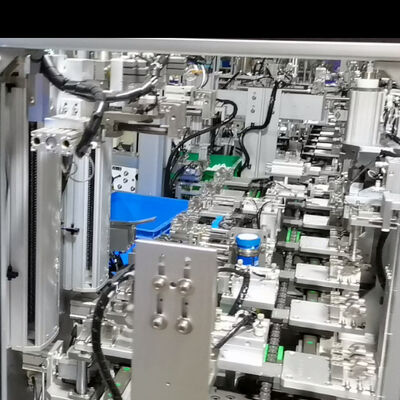

  • Linear sliding rail conveying system with servo motor drive for precise intermittent movement
  • Static fixtures during assembly with precise positioning and secondary positioning at each workstation
  • Independent manipulators at each station for simplified maintenance
  • Cylinder-powered manipulators for faster spare parts changes and easier debugging
  • Automatic silicone oiling during tube insertion process with 4L oil storage capacity
  • Optional enclosure for feeding plate to reduce production noise
  • Comprehensive detection after each assembly process to eliminate defective products
  • PLC system control with touch screen operation interface
Technical Specifications

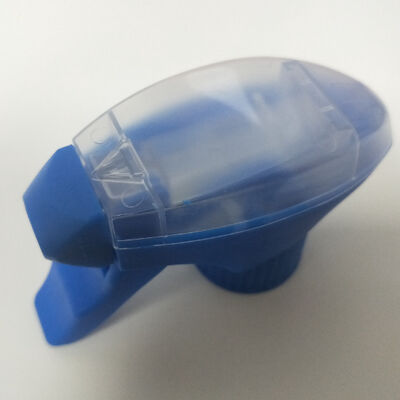

Applicable Products Lotion pump, shampoo pump, water sprayer, trigger sprayer, perfume pump, spray nozzle
Production Speed 1500-2500 pieces per hour (customizable to customer requirements)
Qualified Product Rate Above 98%
Operation Rate Above 95%
Power Source AC380V, 50Hz, 4kW per hour
Dimensions Actual size varies with production speed requirements
Weight Approximately 3000kg
Operator Requirement 1 person per machine set
